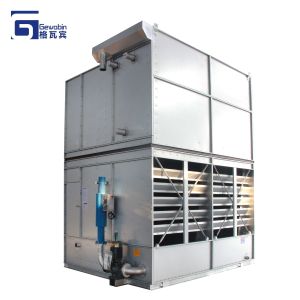

80 Ton Cooling Tower Exporter Square Closed Loop Type Counter Flow
Water Cooling Tower
Introduction
Evaporative Condenser for water cooling, The possibilities for
choosing appropriate heat exchangers are severely limited when
there is a particularly high power need and relatively little
installation area.
In accordance with established industry quality standards, Gewabin
uses the highest quality raw materials and cutting-edge technology
in the manufacturing of its evaporative condensers.
| pecifications of Water-cooling Evaporative Condenser |
| Heat refection under Normal operating condition | | kw | 2050 |
| Propeller fan | Qty. | set | 2 |
| blowing rate | L/S | 2*16.7 |
| Power | kg | 2*4.0 |
| Water circulating pump | Water volume | m3/h | 170 |
| Power | kw | 4.0 |
| Weight | shipping | kg | 7815 |
| Operating | kg | 11250 |
| Refrigerant charge | | kg | 221 |
Working principle
Water poured upon a high-temperature gaseous refrigerant in a pipe
coil causes heat exchange. During the procedure, the
high-temperature gaseous refrigerant becomes liquid.
The heated spray water vapour is removed by the fresh air as it
ascends from the bottom to the top of the condenser. The water
fender board will stop the vapour water as it runs through pipe
coils into the collection basin and then back into the circulation
system. The water level regulator can be used to replenish the lost
water.
Production Advantage
Water Cooling Evaporative Condensers are commonly used in various
industrial and commercial applications to cool down water and
remove excess heat generated by processes or equipment. These
towers are designed to efficiently transfer heat from the water to
the surrounding air through evaporation, ensuring optimal cooling
and maintaining the desired temperature.
Water Cooling Evaporative Condensers offer several advantages,
including their compact design, ease of installation, and efficient
heat transfer capabilities. They are a cost-effective and reliable
solution for various applications that require effective cooling
and temperature control.
Application Case
For easier discussions, 24 hours on line service available: Yaling
is online: skype: tang.yaling
Mob./WhatsApp/Wechat: 8618761578489
Many thanks for your interests, and your inquires are always well
attended!
